SOLAR TECHNICIAN (ELECTRICAL) (NSQF)
Solar Technician (Electrical) NSQF Syllabus
Solar Lab
To educate students for employment in the rapidly expanding solar energy industry, the National Skills Qualifications Framework (NSQF) offers the Solar Technician (Electrical) course. Clean and sustainable energy solutions are promoted by this course, which focuses on the installation, upkeep, and troubleshooting of solar photovoltaic (PV) systems and solar-powered electrical equipment.

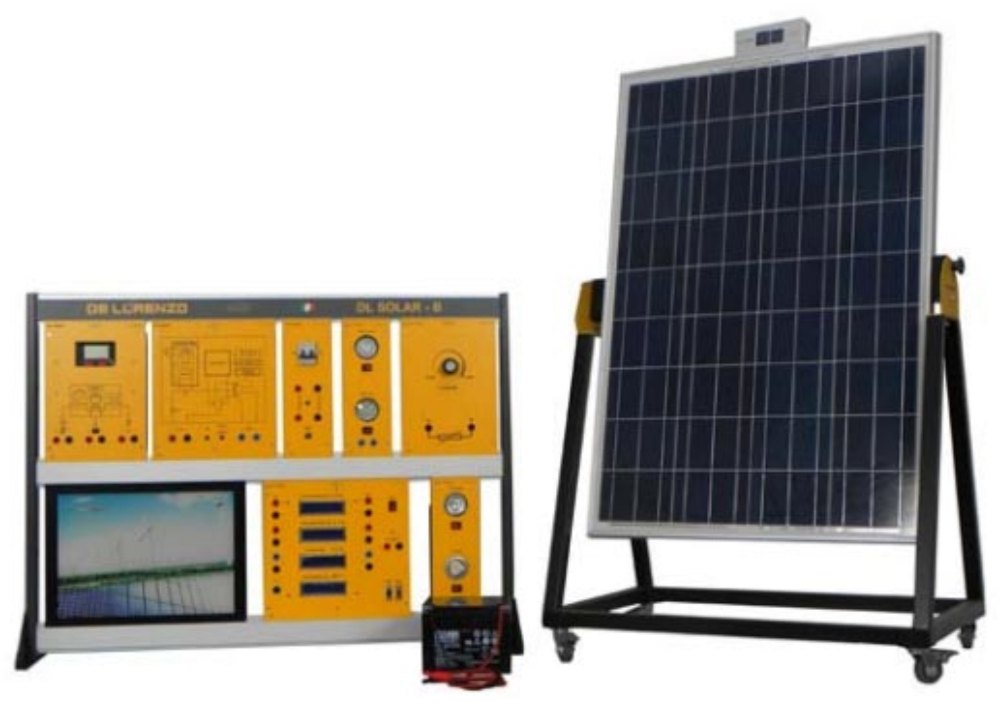

- Solar PV Training Kit with Charge Controller & Inverter
- Solar Panel (10W, 40W, 100W – Mono/Polycrystalline)
- Solar Power Generation Demonstrator
- Solar Street Light Setup (Standalone Unit with Battery)
- Solar Home Lighting System (Demo Kit with Load)
- Solar Inverter (PWM / MPPT Types – Demo Units)
- Solar Charge Controller (PWM / MPPT Types)
- Solar DC Distribution Board (With MCB, SPD, Fuses)
- Mounting Structure (Roof & Ground Type – Demo Setup)
- Battery Bank (Lead Acid / Li-ion – Deep Cycle)
- DC-AC Inverter with Grid Tie / Off-Grid Setup

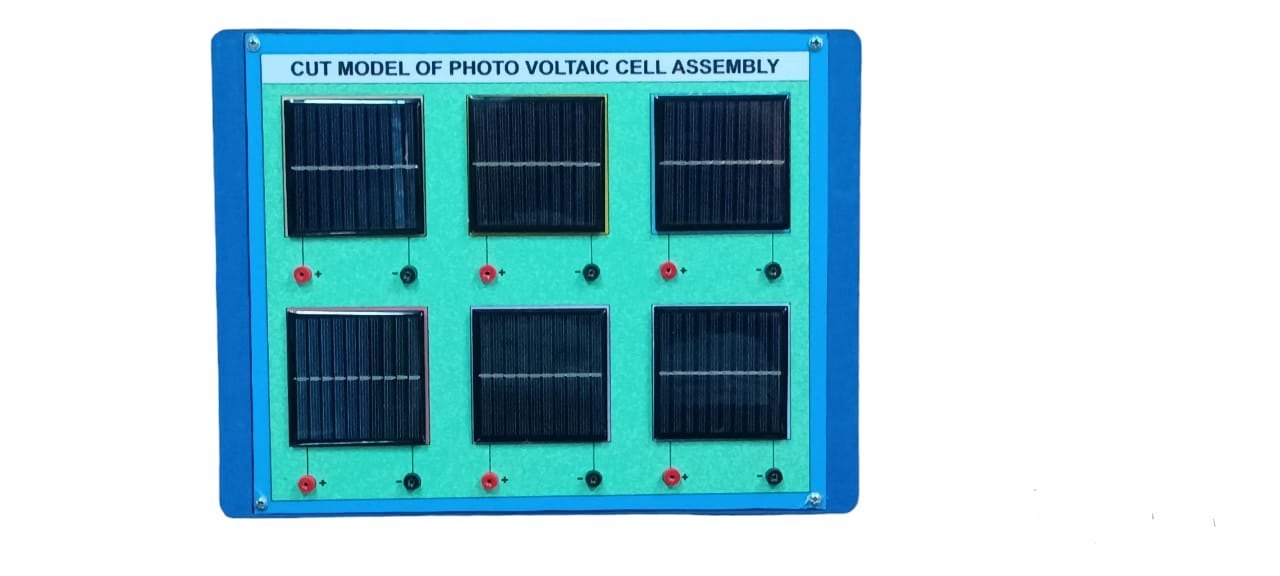

- Solar PV Module Cut Section and Working Display Unit
- AC/DC Load Setup (Bulbs, Fans, Pump, etc.)

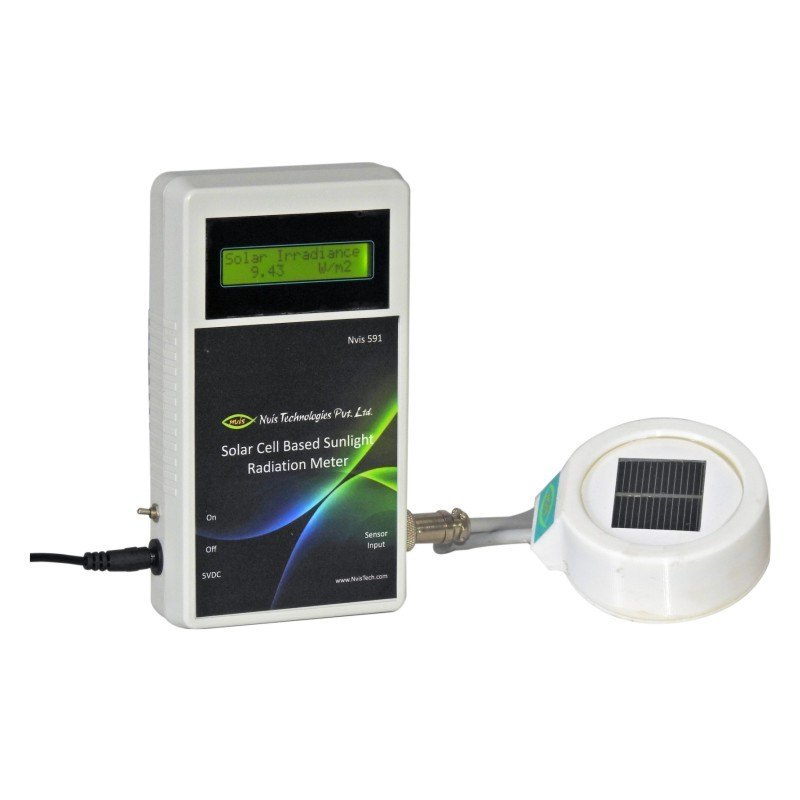

- Multimeter, Clamp Meter, and Solar Radiation Meter
- Pyranometer / Lux Meter for Solar Irradiance Measurement
- DC Wiring Board with Circuit Breakers and Connectors
- MC4 Connector Crimping & Termination Tool Kit
- Solar Cable Set (UV Resistant) and Wiring Practice Panel
- Installation Tool Kit (Spanners, Screwdrivers, Wire Strippers, etc.)
- Earthing Demonstration Kit (Chemical / Pipe / Plate Type)
- Lightning Arrestor Setup Demonstrator
- Energy Meter (Net Metering / Bidirectional)
- Solar PV System Maintenance Tool Kit
- Solar Site Survey Toolkit (Compass, Clinometer, GPS, Measuring Tape)
- Safety Kit (Insulated Gloves, Helmet, Goggles, Harness, Shoes)
- Fire Extinguisher and First Aid Kit
- Solar Safety Practices & Do’s/Don’ts Chart
- Solar PV Troubleshooting Board (Wiring, Connections, Faults)
- Solar System Sizing and Calculation Software (Optional)
- Solar PV System Performance Monitoring Display
- Project Board for Solar Pump / Home Light System / Street Light
- Solar PV Array Cleaning Tools & Maintenance Guidelines
- Solar Energy Awareness Posters & IEC Symbols Chart
- Record Book Templates, Installation Reports, Test Reports
- Mini Project Kits (Solar Lantern, Mobile Charger, Fan System)
