Synchromesh Gear Box – Cut Section Working Model

Overview

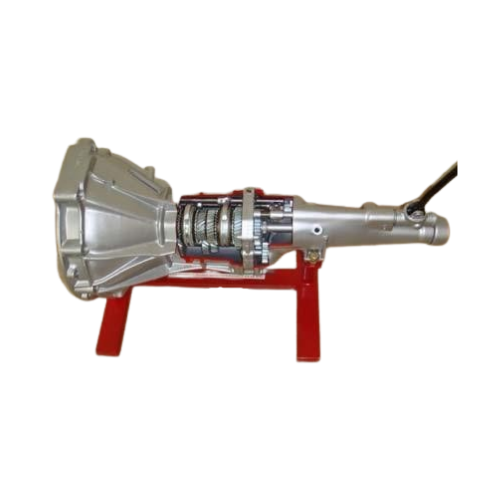

The Synchromesh Gear Box – Cut Section Working Model is an automobile training and demonstration unit designed to explain the construction, gear engagement, and smooth gear shifting mechanism of a synchromesh gearbox.

This cut section model allows students to clearly observe the synchronizer assembly, gear pairs, shafts, and selector mechanism, making it ideal for understanding modern manual transmission systems.

Product Range

★ 3-speed and 4-speed synchromesh gearbox models
★ Single-cone and multi-cone synchronizer variants
★ Manually operated and motorized working models
★ Floor-mounted and table-top display units

Key Features

★ Precisely cut gears and synchronizer components
★ Demonstrates smooth gear engagement without grinding
★ Clearly visible main shaft, lay shaft, and gear selector
★ Robust metal construction with stable mounting frame
★ Safe, low-maintenance, and classroom-friendly design

Applications

★ Demonstration of synchromesh gearbox working principle
★ Training in automobile and mechanical engineering courses
★ Understanding gear ratios and power transmission
★ Used in engineering colleges, polytechnics, and ITIs
★ Ideal for workshop and laboratory demonstrations

Learning Outcomes

★ Understanding the function of synchronizer mechanism
★ Knowledge of smooth gear shifting operation
★ Identification of gearbox components and their roles
★ Enhanced practical learning of manual transmission systems
